About This

• USB-C Plug-and-Play for Direct Measurement Setup: The ECM999U connects directly via USB Type-C, eliminating the need for phantom power or an external audio interface. It is optimized for fast deployment in room analysis, speaker testing, system tuning, and other measurement applications.
• Omnidirectional Free-Field Measurement Microphone: Designed with an omni free-field condenser configuration, the ECM999U is intended for acoustic analysis, loudspeaker measurement, response capture, and signal evaluation in studio, field, and educational environments.
• 24-Bit/48kHz High-Resolution USB Audio: The ECM999U supports 24-bit / 48kHz digital operation, providing a high-resolution signal path for detailed measurement and analysis. Combined with a 10Hz–20kHz frequency response, it offers the bandwidth required for a wide range of test and verification tasks.
• 1/4-Inch Pre-Polarized Condenser Capsule, 133dB Max SPL: A 1/4-inch pre-polarized condenser capsule and integrated measurement circuit support stable performance under demanding test conditions. With maximum SPL up to 133dB, the ECM999U is suitable for loudspeaker evaluation and high-level acoustic measurement work.

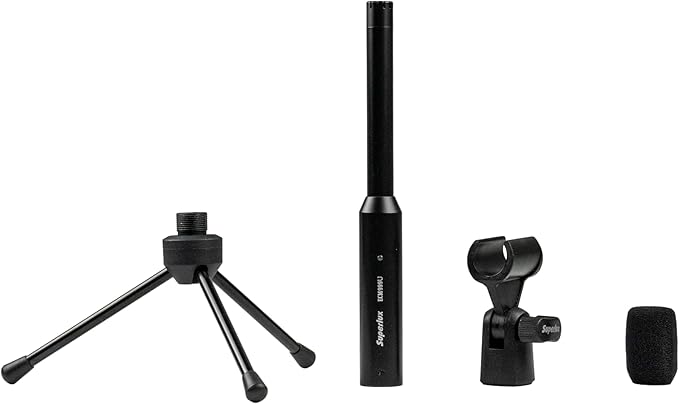

• Complete Measurement Set for Win and Mac: The package includes the HM10S mic clip, DS01 table stand, S02 windscreen, and 2-meter USB cable for immediate operation. Compatible with Windows 10, Windows 11, and Mac systems.

Overview

• Recommended Uses For Product : Studio Recordings, Room Calibration, Speaker Testing, Acoustic Analysis
• Brand : Superlux
• Model Name : ECM999U
• Connectivity Technology : USB
• Connector Type : USB
• Special Feature : Stand
• Compatible Devices : Speaker

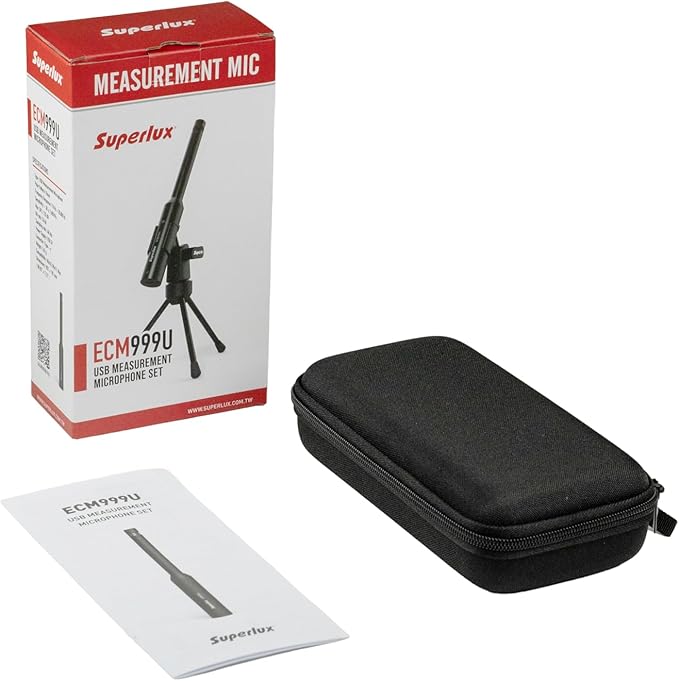

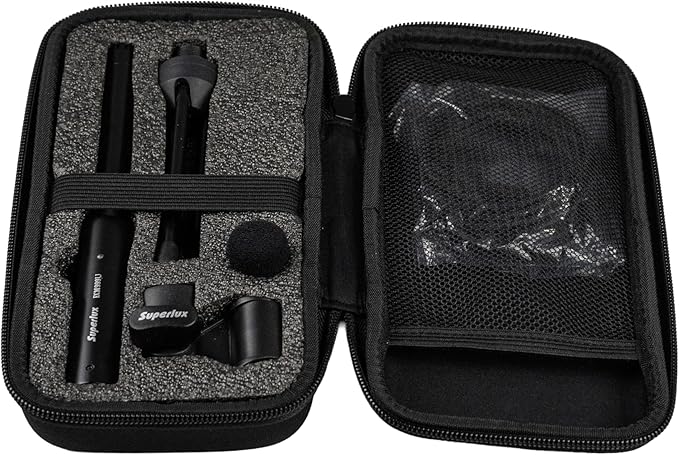

• Included Components : 2-meter USB cable, DS01 Table Stand, Microphone Clip, Soft carrying case, Sponge Windscreen
• Polar Pattern : Unidirectional
• Power Source : Corded Electric
